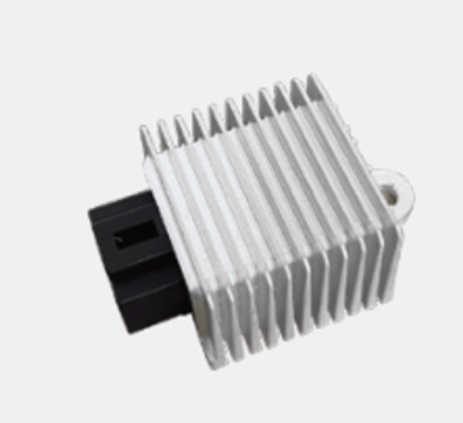

120W DC/DC Converter 13.2Vo Iron™ Series

Green Watt Power’s 120W DC/DC power modules are designed with compact size, low cost, high efficiency, and high reliability. Featured with a fully sealed mechanical structure and 12V and 13.2V with up to 10A output, this series offers solid and safe power conversions on electrical bikes, electrical motorcycles, and other DC/DC applications.

- - Wide Input Voltage: 30~60VDC
  - Dual Output Voltage: 13.2VDC
  - High Reliability
  - High Efficiency up to 5%
  - Over Current, Short Circuit and Over Temperature Protection
  - Natural Cooling
  - Operating Temperature: -30~50^oC
  - IP67 Ingress Protection (excluding connector)

Datasheet

More Information

General Specifications for Model (factory number) EVD-48-120-13 (PLD120-DX02-01210NEM)
Input Voltage	30VDC ~ 60VDC (±2)
Max. Input Current	5.0 A @ Vin min
Efficiency @ 30Vin, 13.2Vout/8A	Efficiency @ 30Vin, 13.2Vout/8A
@ 60Vin, 13.2Vout/8A	93.0% min / 94.5% typ.
92.0% min. / 93.5% typ.	92.0% min. / 93.5% typ.
Input/Output Isolation	Non-isolated
Output Voltage, nominal	13.2VDC
Output Voltage Accuracy
Output Current (@ Vout nom)	0.1A min. / 8A typical / 10A (1 min max.)
Output Power	96W (Continuous),
120W (Peak for 1min)	120W (Peak for 1min)
Output voltage ripple and noise	<300mVp-p (20MHz BW, 0.1/10uF)
Rise Time @ Full Load	50ms max. 30-60Vin
Dynamic Load Response	Dynamic Load Response
10% to 100% load step	8.8 ~ 13.2 Vo max.
(slope: 1A/us, frequency: 50Hz, duration: 10ms)	(slope: 1A/us, frequency: 50Hz, duration: 10ms)
Enable (On/Off Control)	Output enabled if connected to Vin (≥30V) and Off with no signal
Over Current and Short Circuit Protection (SCP)	Converter enters latch mode at 1.4 ~ 2.0 times rated current / shorted output.
Recycle input voltage to restart output after fault condition is removed.	Recycle input voltage to restart output after fault condition is removed.
Ingress Protection	IP67 (excluding connector)
Operating Ambient Temperature	Operating Ambient Temperature
Case Temperature	Case Temperature
Storage Temperature	-30 oC ~ +50oC (natural convection)
-30 oC ~ 60 oC	-30 oC ~ 60 oC
-30 oC ~ 80oC	-30 oC ~ 80oC
Dimensions (L x W x H)	69 x 44 x 30 mm
Weight	92 g
Hi-pot	Input & Output to Case: 500VAC / 5mA max / 60 seconds (3s for production)
MTBF	MTBF is >100,000 hours at 25 oC, Rated input, and full load at output.
Lifetime	The Lifetime is >20,000 hours at 25 oC, Rated input, and full load at output.
Burn-in test	2 Hours min. burn-in at 40℃ ± 2 ℃ under full load condition.
