125W

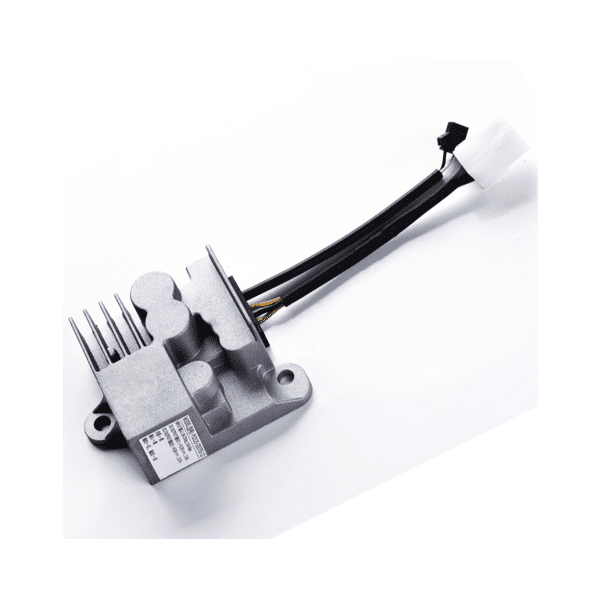

Green Watt Power’s 125W DC/DC power modules are designed with compact size, low cost, high efficiency and high reliability. Featured with a fully sealed mechanical structure and 12V/10A and 5V/2A dual outputs, this series offers solid and safe power conversions on electrical bike, electrical motorcycle and other DC/DC applications.
- Wide Input Voltage: 36~100Vdc
- Output Voltage: 12Vdc & 5Vdc
- High Reliability
- High Efficiency up to 87.5%
- Short Current Protection
- Natural Cooling
- Operating Temperature: -20~40oC
- IP65 Ingress Grade (Module only)
| Module Number | Output Voltage Range | Maximum Output Current | Voltage Range |
|---|---|---|---|
| EVD-60-125-D12-5 (PLD125-EVDN10-12) | 12V | 10A | +/-5% |
| 5V | 2A | +/-5% |
