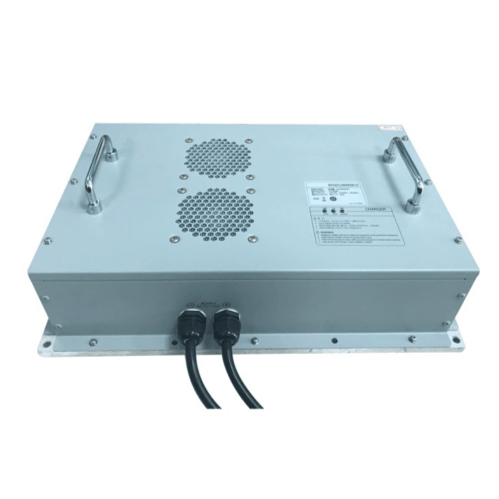

7.2kW
Green Watt Power’s 7.2kW super capacitor chargers are designed with ultra-high efficiency, as well as built-in intelligent control. The extraordinary performances of circuit design provide the charger with high power density and high conversion efficiency. This series of chargers offer solid and safe power conversion with air cooling, long life time for a wide range of applications in super capacitor and battery charging applications.
- Input Voltage: 310~580Vac
- Output Power: 7200
- High Reliability
- High Efficiency: Up to 96%
- All-Around Protections: Phase Lack, OVP, UVLO , SCP, OTP
- Compatible with Air Cooling
- Low Temperature Start Up @ -40ºC
- High Temperature Full Load Operation @ 50ºC
- IP20 Ingress Grade
- CAN Communication
| EVC-80-7200 (PLD9080) | |||||||
|---|---|---|---|---|---|---|---|
| Input Parameters | Output Parameters | ||||||
| Input Voltage Range | MIN MAX | 310 580 | VAC | Output Voltage Range | MIN MAX | 0 90 | VDC |
| Input Current | MAX | 15 | A | Output Current | MAX | 80 | A |
